VIBRATING ROLLER

CVR1200E42 / CVR1000E38 / CVR800E32 / CVR650E28

CVR- series is small-size double drum walk-behind vibrating rollers.
They are applied to compacting and maintaining various roads, Express way shoulder, side walk, parking area, sports ground lawn, especially suited for compaction of narrow areas, such as pipeline channel and drainage trench and etc.
Mechanical all-drum travel drives with greater grade-ability.

FEATURES



  • The CVR-series is a double drum soil & asphalt compactor with small machine features and reliable perfomance.
  • This machine has been designed to be highly versatile with minimum maintenance, fitting a wider range of utility-sized applications confronting contractors.
  • The CVR-series is very strong compacting and good durability.
  • Its excellent maneuverability makes it the right choice for confined areas.
  • Vibrating road roller is mainly made up of engine part, hydraulic device part, frame part, vibration part.
  • Type of vibrating Roller is "Pedestrian Double Drum Vibrating Roller".
  • The engine is installed on upper frame. Between the engine and the upper frame is installed a shock absorber to block vibration from pendulum of vibrating roller.
    This makes it well adjustable to work requirements, economical and reliable.
  • High-pressure Axial piston pump and motor in the hydraulic vibrating system allows it strong resistance to pollution.

APPLICATIONS



  • CVR-SERIES Vibrating rollers are ideal for these applications :
    Compacting back fill along and beneath foundations and in utility trenches
  • Compacting interlocking brick and decorative stone
  • Hot mix asphalt jobs such as driveway paving and pothole repair
  • Gravel driveway and walkway compaction
  • Landscape and structural granular soil compaction
HYDRAULIC PISTON PUMP

HYDRAULIC PISTON PUMP

HANDLE CONTROLLER

HANDLE CONTROLLER

VIBRATING ROLLER DIESEL ENGINE TYPE

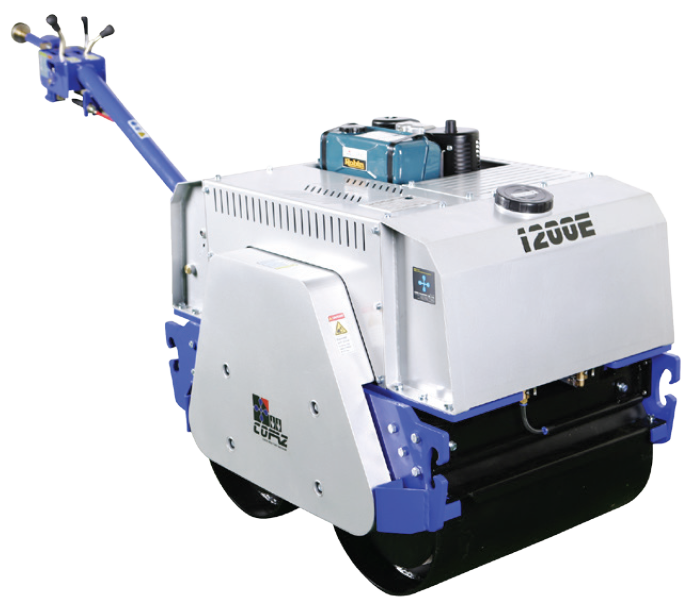

CVR1200E42

CVR1200E42

CVR1000E38

CVR1000E38

CVR800E32

CVR800E32

CVR650E28

CVR650E28

Product Views



Product Views
Product Views
Product Views
Product Views
Product Views
Product Views
  • Durable vibrating system with supply of oil lubrication
  • Italian hydraulic piston pump & motor equipped
  • Robin(Subaru) 4-cycle air-cooled diesel engine equipped
  • Japanese bearing & oil seal equipped
  • Electric starter & recoil starter
  • Dead man handle / push stop
  • Reinforced durable frame

USE

  • Pipeline backfill construction
  • Repair for asphalt construction
  • Compacing sand, soil, gravel and asphalt paving

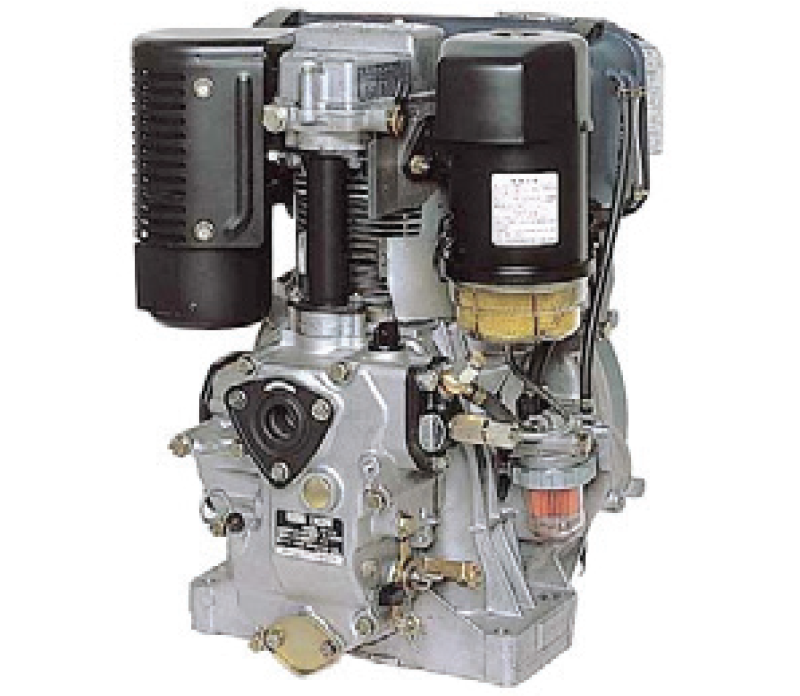

AVAILABLE ENGINE



L100N (10.0HP)

L100N (10.0HP)

KD440 (10.0HP)

KD440 (10.0HP)

DY41DS (8.5HP)

DY41DS (8.5HP)

SPECIFICATIONS



MODEL CVR1200E42 CVR1000E38 CVR800E32 CVR-650E28
OPERATION WEIGHT Kg / lb 1,200 / 2,643 1,000 / 2,202 800 / 1,763 650/1,431
DIMENSION mm 800 X 2,700 X 1,170 800 X 2,700 X 1,170 750 X 2,700 X 1,170 750 X 2,700 X 1,170
(W) X (L) X (H) inch 31.5 X 106.2 X 46.0 31.5 X 106.2 X 46.0 29.5 X 106.2 X 46.0 29.5 X 106.2 X 46.0
ENGINE Hp / Kw 8.5 / 6.375
ROBIN(SUBARU) 4CYCLE AIR-COOLED ENGINE DY41DS (STANDARD)
ENGINE DIESEL
STARTING METHOD RECOIL & ELECTRIC STARTER
DRIVE/TRANSMISSION HYDRAULIC MOTOR-DRIVEN WITH CHAIN
DIAMETER OF DRUM mm / inch 406 / 16.0 406 / 16.0 406 / 16.0 406 / 16.0
LENGTH OF DRUM mm / inch 700 / 27.5 700 / 27.5 650 / 25.6 650 / 25.6
WATER TANK l / gal 42 / 11.1 42 / 11.1 33 / 8.72 42 / 8.72
VIBRATION FREQUENCY VPM 75 (4,500) 75 (4,500) 75 (4,500) 75 (4,500)
CENTRIFUGAL FORCE KN / Kgf 42.5 / 4,333.7 38.8 / 3,956.4 32.7 / 3,334.7 28.2 / 2,875.5
SPEED RANGE Km(Mile)/ Hr 3.5 (2.174) 3.5 (2.174) 3.5 (2.174) 3.5 (2.174)
GRADE-ABILITY % 30 30 35 35
