E-CATALOG

GASOLINE ENGINE TYPE

TAMPING RAMMER

CTR80E / CTR70E / CTR60E

Copaz tamping rammer series is a perfect solution to the trends of preference in construction market and the requirements of lower emission & consumption and higher power.
Their reliable performance makes them a priority choice when effective compaction of cohesive, mixed or granular type soil is needed on a narrow work area.

FEATURES



  • Gasoline engine makes the fuel supply more convenient at any construction jobsite
  • Honda gasoline engine is with low fuel consumption and also ensures a longer life and easier maintenance
  • Thicker jumping spring and reliable engine provide much stronger impact force
  • Concise structure offers easier maintenance and accessibility
  • Ingenious throttle lever for smooth operation
  • Heavy shock mount system reduces hand-arm vibration and improves operator comfort
  • Durable plastic oil tank with big capacity offers longer life and rust-free
  • Laminated wood and steel shoe absorbs and withstand vibration shock
  • Perfectly balanced while delivering ideal compaction with controlled jumping motions without affecting the impact force
  • Manufactured polyurethane ribbed bellow for long life

APPLICATIONS



Tamping rammer are ideal for these applications : Compacting back fill along and beneath foundations and in utility trenches

OPTION



  • Engine (Diesel air-cooled 4cycle engine)
  • Anti-Vibration handle with padded grip
  • Counter-weight
  • Streamlined safety engine guard
  • Adjustable Height of handle
  • Tool kit for emergency repair

TAMPING RAMMER GASOLINE ENGINE TYPE

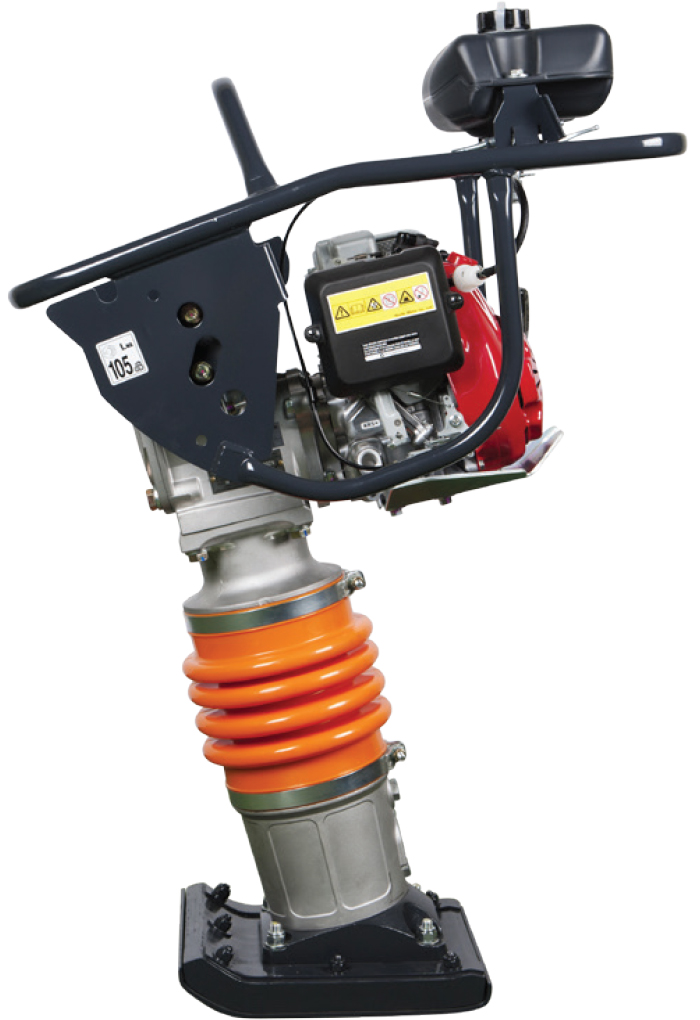

CTR80E

CTR80E

USE

  • Pipeline backfill construction
  • Repair for asphalt construction
  • Compacting the sand, soil, gravel
CTR70E

CTR70E

USE

  • sphalt road construction
  • Pipeline backfill construction
  • Repair for asphalt construction
  • Compacting the sand, soil, gravel
CTR60E

CTR60E

USE

  • sphalt road construction
  • Pipeline backfill construction
  • Repair for asphalt construction
  • Compacting the sand, soil, gravel

Product Views



Product Views
Product Views
Product Views
Product Views
Product Views
Product Views

AVAILABLE ENGINE



L48N (4.7HP)

L48N (4.7HP)

GX100 (2.9HP)

GX100 (2.9HP)

EH09 (2.8HP)

EH09 (2.8HP)

SPECIFICATIONS



MODEL CTR80E CTR70E CTR60E
OPERATING WEIGHT Kg / lb 80 / 176 70 / 154 63 / 138
DIMENSION (W) x (L) x (H) mm / inch 360×690×1090 / 14.1×27.1×42.9 360×690×1090 / 14.1×27.1×42.9 360×690×1090 / 14.1×27.1×42.9
PLATE SIZE mm / inch 280×335 / 11.0×13.1 250×335 / 9.8×13.1 250×335 / 9.8×13.1
JUMPING STROKE mm 30~62 39~59 26~43
IMPACT FORCE min 24~43 20~36 16~28
VIBRATION FREQUENCY Hz / vpm 11.2 / 672 11.2 / 672 11.2 / 672
TRAVEL SPEED min 10 10 10
ENGINE
BRAND HONDA HONDA HONDA
MODEL GX100 (P/T) GX100 (P/T) GX100 (P/T)
TYPE 75 (4,500) 75 (4,500) 75 (4,500)
CENTRIFUGAL FORCE AIR-COOLED 4-CYCLE ENGINE AIR-COOLED 4-CYCLE ENGINE AIR-COOLED 4-CYCLE ENGINE
FUEL GASOLINE GASOLINE GASOLINE
OUTPUT hp / kw 2.3 / 1.725 2.3 / 1.725 2.3 / 1.725
SPEED rpm 3750 3750 3750
TANK CAPACITY l / gal 2.7 / 0.71 2.7 / 0.71 2.7 / 0.71
WEIGHT kg / lb 10.6 / 23.36 10.6 / 23.36 10.6 / 23.36
