DIESEL FORWARD PLATE

COMPACTOR

CVP160D / CVP120D / CVP100D (OPEN TYPE)

CVP-SERIES single forward vibratory plate compactors can effectively and efficiently compact granular soils, crushed aggregates, and hot mix asphalt in open jobsites of all sizes.

FEATURES



  • Reliable and powerful 4 cycle air-cooled diesel engine with recoil starter
  • Fully comfortable anti-vibration handle with padded grips
  • Standard water kit allows easier compaction of hot mix asphalt and dusty area
  • Heavy-duty shock mounting reduce high-vibration to the working engine and handle
  • Open type of plate compactor provides the ventilation, easy cleaning and maintenance
  • High centrifugal force is most suitable for powerful compaction and performance
  • High-vibration frequency brings better result of compaction
  • Lifting hook allows in ditch work safely and easily
  • Steel belt safety covers for prevention of sand and soil
  • Built-in wheel for easy transportation
  • Streamlined base plate for easy access to corner

APPLICATIONS



  • Plate compactors are ideal for these applications : Compacting back fill along and beneath foundations and in utility trenches
  • Compacting interlocking brick and decorative stone
  • Hot mix asphalt jobs such as driveway paving and pothole repair
  • Gravel driveway and walkway compaction
  • Landscape and structural granular soil compaction

USE

  • Asphalt road construction
  • Pipeline backfill construction
  • Repair for asphalt construction
  • Compactiong the sand, soil, gravel

OPTION

  • Streamlined safety engine guard
  • Height of handle
  • Water tank
  • Tool kit for emergency repair
  • Anti-Vibration handle with padded grip
  • Plastic belt cover
  • Urethane mat

COMPACTOR OPEN TYPE GASOLINE PLATE



CVP-100D
CVP-100D
CVP-120D
CVP-120D
CVP-160D
CVP-160D

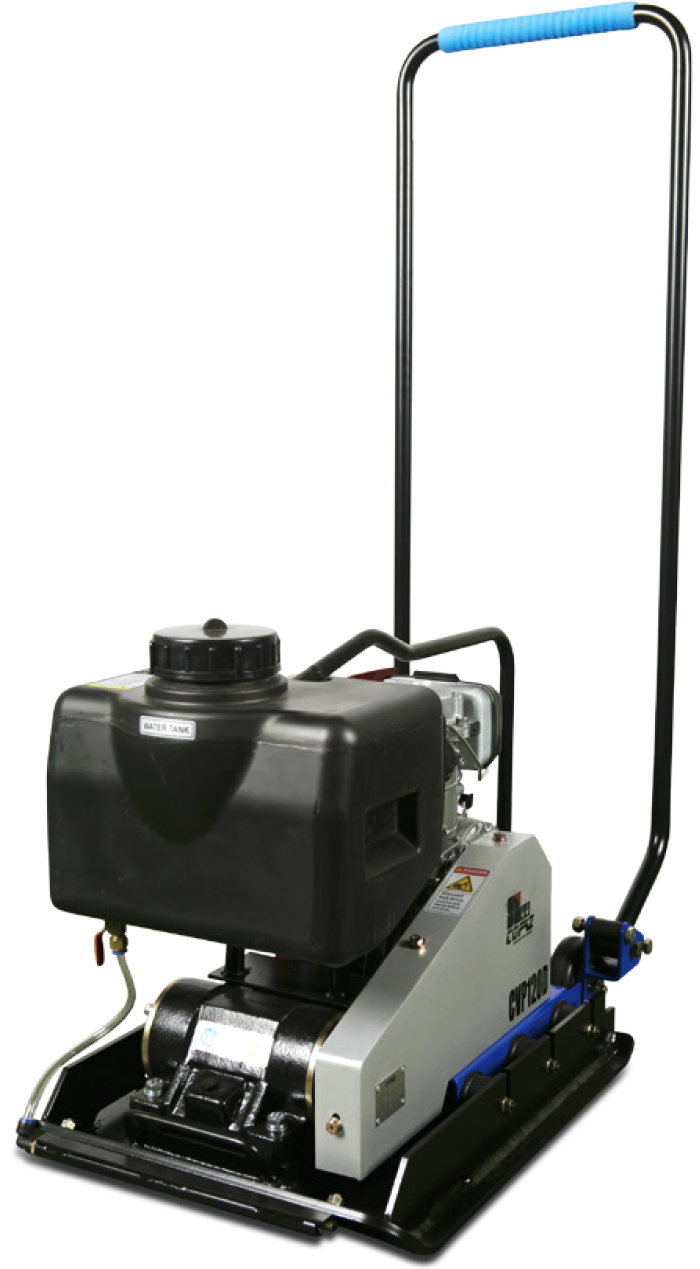

Product Views



Product Views
Product Views
Product Views
Product Views
Product Views

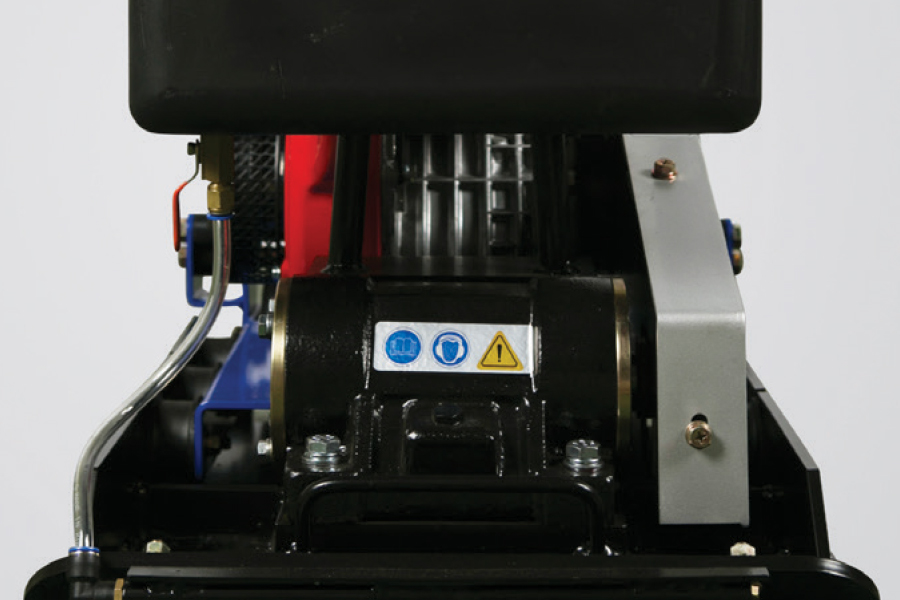

Product Views

ADVANTAGE



  • Open type of plate compactor provide ventilation, easy cleaning and maintenance.
  • Diesel plate compactor is most suitable for powerful compaction in oil drilling area.
  • Heavy duty shock-absorber isolate engine and handle from strong vibration of base plate.
  • Essentric shaft make best quality of compaction with strong vibration in short time.

USE

  • Compacting soil, gravel, sand and aphalt.

OPTION

  • Engine (Diesel)

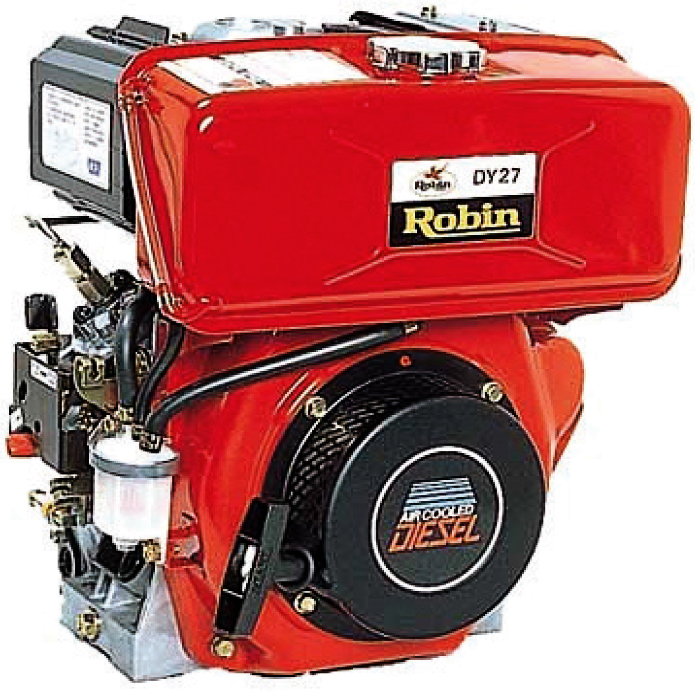

AVAILABLE ENGINE



DY27 (6.0HP)

DY27 (6.0HP)

DY23 (4.5HP)

DY23 (4.5HP)

SPECIFICATIONS



MODEL CVP100D CVP120D CVP160D
OPERATING WEIGHT Kg / lb 112 / 246 132 / 290 163 / 359
DIMENSION (W) x (L) x (H) mm / inch 70×865×1170
18.5×34.0×46.0
500×865×1170
19.6×34.0×46.0
530×865×1170
20.8×34.0×46.0
PLATE SIZE mm / inch 470×648.5 / 18.5×25.5 500×648.5 / 19.6×25.5 530×648.5 / 20.8×25.5
CENTRIFUGAL FORCE KN / kgf 19.3 / 1,968 21.1 / 2,151 23.5 / 2,396
VIBRATION FREQUENCY VPM 6,000 6,000 6,000
TRAVEL SPEED m(ft) / min 25 / 55 22 / 48.4 22 / 48.4
COMPACTED AREA ㎡ / hr 740 790 860
ENGINE
BRAND ROBIN ROBIN
MODEL DY27 DY23
TYPE AIR-COOLED 4-CYCLE ENGINE AIR-COOLED 4-CYCLE ENGINE
FUEL DIESEL DIESEL
OUTPUT hp / kw 6.0 / 4.5 4.5 / 3.375
SPEED rpm 3,600 3,600
TANK CAPACITY l / gal 3.2 / 0.84 3.2 / 0.84
WEIGHT kg / lb 29.5 / 64.9 29.0 / 64.9
