E-CATALOG

ENGINE & ELECTRIC TYPE

FLOOR PLANER

CFP250M / CFP300M / CFP250E / CFP300E

Professional Floor Planer CFP SERIES, heavy duty and easy to handle.
(Specially tungsten blades for rental companies) Ideal for cleaning, deep grooving, level reduction, removing of coatings, de-rusting of metals, etc on small / medium size surfaces such as concrete, asphalt, steel, iron, stone, wood, etc or any other hard surface.

FEATURES



  • A road preparation of Concrete and Asphalt, cleaning and removing epoxy coatings, thermoplastic coatings painting and traffic lanes.
  • Remove mastics, adhesives and rubberized coatings, mill scale and rust from steel or road surfaces.
  • Level uneven surfaces and trip hazards.
  • Used for light utility milling, road surface preparation and slotting and groove the concave-shock lines.

Shock + Marking = concave shock lines designed at the outside of the street edge and emergency parking lines.
Prism-concave shock lines : designed at the roads with frequent accident, and places requiring better understanding of the road contour,
such as roadside line, turnings, division, the entrance and exit stripe, bridge, tunnels, steep slopes, city road junctions parking line, as well as the driveway boundary.
Groove : designed at the bend roads, ramp, and deceleration lane of the toll stations, especially some ramps high on one side and low on the other.

OPTION

  • Cutting blades (Diamond, Tungsten blade)
  • Engine (Available engine: GX270 or GX390)
  • Electric motors (3.0hp~5.0hp)
  • Counter-weight

DRUM & DIAMOND & TUNGSTEN BLADES



Drum of Diamond blades

Drum of Diamond blades

Drum of Tungsten blades

Drum of Tungsten blades

Shape of Tungsten blade

Shape of Tungsten blade

FLOOR PLANER ENGINE & ELECTRIC TYPE

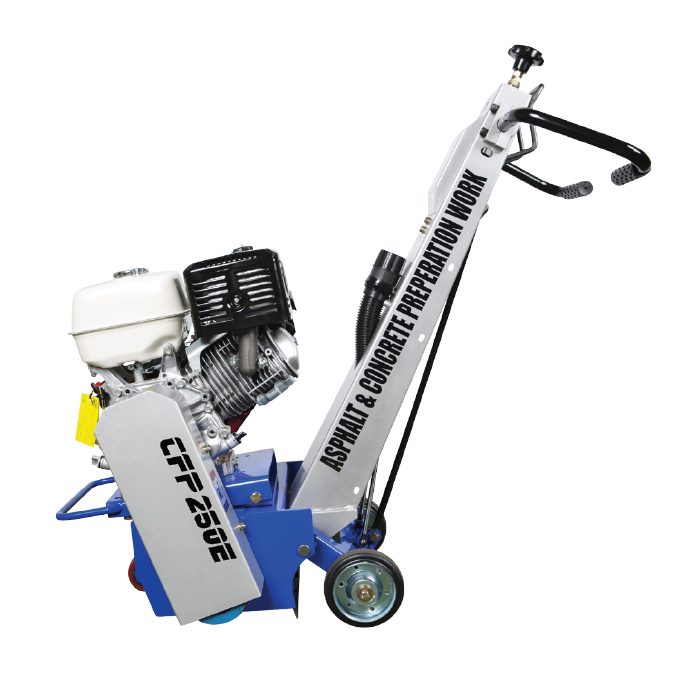

CFP-250E
CFP-250E

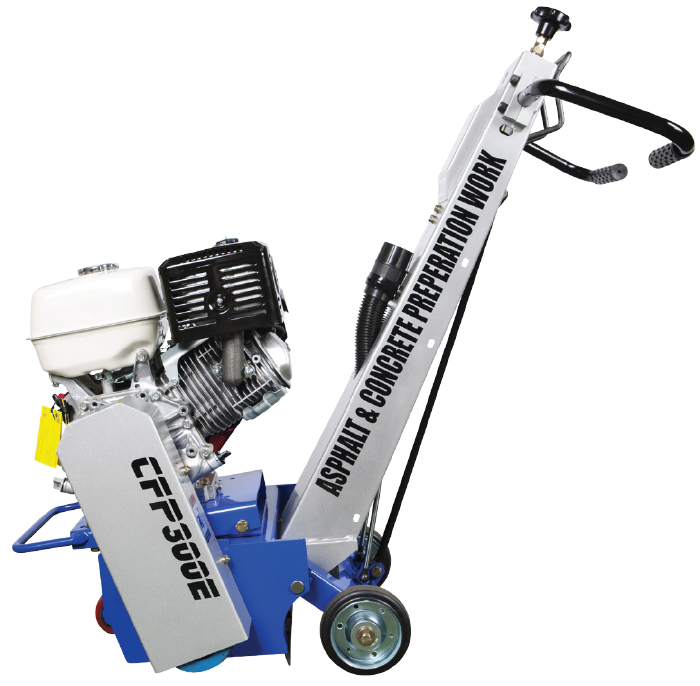

CFP-300E
CFP-300E

Product Views



Product Views
Product Views
Product Views
Product Views
Product Views

ELECTRIC MOTOR



SIEMENS MOTOR

SIEMENS MOTOR

Functional advantages

  • Compact design & easy to use for work Durm with 6shafts, together with a variety of cutters of different types for choice.
  • With depth instructions scale dial, and use precise pitch adjustment, the milling depth can be accurately controlled.
  • With greater weight, high-powered engines and electromotor, it is more suitable for construction or road projects.
  • With cleaning adapter, it can be linked with cleaning equipments.
  • Quick changing drums and cutters.
  • Grinding epoxy, glues and urethane, high working efficiency.

USE

Concrete, asphalt, iron, stone and wood surface for cleaning, deep grooving, level reduction, removing of coating, de-rusting of metals

AVAILABLE ENGINE



GX390 (13.0HP)

GX390 (13.0HP)

GX270 (9.0HP)

GX270 (9.0HP)

SPECIFICATIONS



MODEL CFP-250E CFP-250M CFP-300E CFP-300M
WEIGHT Kg / lb 110 / 242 106 / 233 126 / 277 124 / 273
DIMENSION
(W) x (L) x (H)
mm / inch 450 x 1175 x 1250
17.7 x 46.2 x 49.2
450 x 1175 x 1250
17.7 x 46.2 x 49.2
550 x 1175 x 1250
21.6 x 46.2 x 49.2
550 x 1175 x 1250
21.6 x 46.2 x 49.2
WORKING WIDTH mm / inch 250 / 9.8 250 / 9.8 300 / 11.8 300 / 11.8
WORKING CAPACITY (ft²) / Hr 100 / 1,076 100 / 1,076 150 / 1,615 150 / 1,615
ENGINE
BRAND   HONDA SIEMENS HONDA SIEMENS
MODEL   GX270 ELETRIC MOTOR GX390 ELECTRIC MOTOR
TYPE   AIR-COOLED
4 CYCLE ENGINE
1P-220V
50 / 60Hz
AIR-COOLED
4 CYCLE ENGINE
3P-380V
50 / 60Hz
FUEL   GASOLINE ELECTRIC GASOLINE ELECTRIC
OUTPUT hp / kw 9.0 / 6.7 3.0 / 2.2 13.0 / 9.75 5.0 / 3.75
SPEED rpm 3,600 3,600 3,600 3,600
TANK CAPACITY gal 6.0 / 1.5 - 6.0 / 1.5 -
WEIGHT kg / lb 25 / 55 20 / 44 31 / 68 32 / 44
