RUBBER TRACK & FULL REMOTE CONTROL TYPE

LARGE CONCRETE & ASPHALT CUTTER

CCG60-HD4TM / CCG80-HD4TM / CCG100-HD4TM

This large-sized road cutter has a strong structure and excellent durability.
It minimizes vibration inside the machine for smooth and powerful cutting.
For the safety of workers, you can operate this large-sized road cutter with a remote control from a distance.
Since machine is moved by rubber track, the macchine does not slip when cutting or moving, and it can be required to cut accurately at the exact position.


REMOTE-CONTROLLER

Product Views



Product Views
Product Views
Product Views
Product Views
Product Views
Product Views
Product Views
Product Views
Product Views

WHEEL TROLLEY & SEMI AUTOMATIC CONTROL TYPE

LARGE CONCRETE & ASPHALT CUTTER

CCG60-HD4WM / CCG80-HD4WM / CCG100-HD4WM

This large road cutter has a strong structure and excellent durability.
It minimize vibration inside the machine for smooth and power cutting.
Workers should control at behind of large concrete cutter.

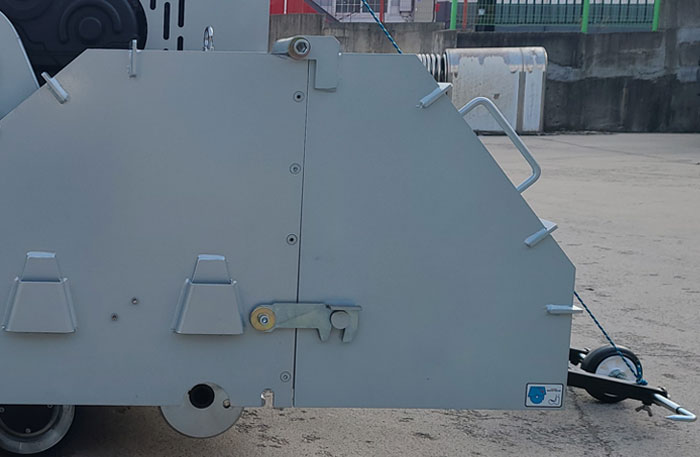

But, machine protect the workers with reinforced diamond blade cover Large concrete cutter is moved by hydraulic system.
Also, exact cutting depth is also adjusted by electrohydraulic pump.

Product Views



Product Views
Product Views
Product Views
Product Views
Product Views
Product Views
Product Views
Product Views
Product Views

LARGE CONCRETE & ASPHALT CUTTER

CCG60-HD4WM / CCG60-HD4TM / CCG80-HD4WM / CCG80-HD4TM / CCG100-HD4WM / CCG100-HD4TM

The powerful COPAZ MCC has a clean, quiet HYUNDAI diesel engineS that is Tier 2~4 Final (Optionable) with 45HP~110HP.
The engine is liquid cooled which allows it to run smoother and longer without overheating.
Increased productivity and lifespan with reduced downtime.

FEATURES



  • Tier 2~4 Final(Optionable) liquid-cooled engine allows for a smoother running, longer lasting saw with higher productivity Strongest frame on the market.
  • Less rear weight for easy maneuvering and reduced operator fatigue.
  • Oil bath blade shaft comes standard.
  • One-hand sawing control and parking brake.
  • Fits through a 40" wide door frame (Optionaable).
  • Quick release blade shaft / flange.
  • Blade shaft tachometer - where its needed - not at the engine, giving you true blade speed.
  • Intuitive and ergonomic control panel provides simple operation and complete access to diagnostic information.

DIAMOND BLADES



DIAMOND BLADES
DIAMOND BLADES

USE

  • Airport runway cutting
  • Water and sewage pipeline replacement work
  • Communication line laying work
  • Highway cutting
  • Demolition of an overpass
  • Bridge demolition work

OPTION

  • Engine (Diesel or Gasoline)
  • Power of engine (Min. 45hp ~ Max. 110hp)
  • Size of diamond cutting blade (Min. 12inch ~ )
  • Full automatic control by remote controller

SPECIFICATIONS



MODEL CCG60-HD4WM CCG60-HD4TM
OPERATION WEIGHT KG 1,500 1,750 MAX. POWER OUTPUT HP/KW 53 / 40 (Optionable)
DIMENSIONS (W)×(L)×(H) MM 850×1,400×1,400 970×1,550×1,500 ENGINE MAX. RPM RPM 2,500
MAX. CUTTING DEPTH MM 450 (Optionble) AIR SUPPLY TYPE T/C + OIL COOLER
MAX. CUTTING RPM RPM 2,200 (Optionable) TORQUE KG.M 16 / 1,600RPM
BLADE RAISE / LOWER ELECTRO-HYDRAULIC PUMP STARTING ENGINE ELECTRIC TYPE ( SELF-START)
AIR FILTER 4-STAGE (Optionable) FUEL TANK VOLUME L STANDARD 24 (Optionable)
SIZE OF TIRE (DIA. × W) MM 320×80 RUBBER TRACK HYDRAULICS
DRIVE SPEED (FLAT ROAD) KM/MIN 0.61 0.81 BLADE CUTTING DEPTH CONTROL ELECTROHYDRAULIC PUMP
CONTROL PANEL INTUITIVE AND ERGONOMIC CC MACHINE MOUNTING WHEELS MOUNTED TROLLEY
COLOR OF BODY BULE & SILVER (Optionable) WHEEL DRIVE METHOD GEAR BOX WITH HYDRAULIC DRIVING SYSTEM
ENGINE ACCESSORY
ENGINE MAKER / ORIGIN HYUNDAI / SOUTH KOREA WATER TANK INBUILT STAINLESS STEEL WATER TANK 20L
ENGINE TYPE DIESEL OPTION
NO. OF CYLINIDER 4-CYLINDER, 4-STROKE ENGINE (Optionable) DIAMETER OF DIAMOND BLADES 12INCH ~
ENGINE COOLING WATER-COOLED
MODEL CCG80-HD4WM CCG80-HD4TM
OPERATION WEIGHT KG 1,634 1,884 MAX. POWER OUTPUT HP/KW 82 / 61.5 (Optionable)
DIMENSIONS (W)×(L)×(H) MM 850×1,400×1,400 970×1,550×1,500 ENGINE MAX. RPM RPM 2,400
MAX. CUTTING DEPTH MM 600 (Optionble) AIR SUPPLY TYPE T/C + OIL COOLER
MAX. CUTTING RPM RPM 2,200 (Optionable) TORQUE KG.M 25.5 / 1,800RPM
BLADE RAISE / LOWER ELECTRO-HYDRAULIC PUMP STARTING ENGINE ELECTRIC TYPE ( SELF-START)
AIR FILTER 4-STAGE (Optionable) FUEL TANK VOLUME L STANDARD 24 (Optionable)
SIZE OF TIRE (DIA. × W) MM 320×80 RUBBER TRACK HYDRAULICS
DRIVE SPEED (FLAT ROAD) KM/MIN 0.61 0.81 BLADE CUTTING DEPTH CONTROL ELECTROHYDRAULIC PUMP
CONTROL PANEL INTUITIVE AND ERGONOMIC CC MACHINE MOUNTING WHEELS MOUNTED TROLLEY
COLOR OF BODY BULE & SILVER (Optionable) WHEEL DRIVE METHOD GEAR BOX WITH HYDRAULIC DRIVING SYSTEM
ENGINE ACCESSORY
ENGINE MAKER / ORIGIN HYUNDAI / SOUTH KOREA WATER TANK INBUILT STAINLESS STEEL WATER TANK 20L
ENGINE TYPE DIESEL OPTION
NO. OF CYLINIDER 4-CYLINDER, 4-STROKE ENGINE (Optionable) DIAMETER OF DIAMOND BLADES 12INCH ~
ENGINE COOLING WATER-COOLED
MODEL CCG100-HD4WM CCG100-HD4TM
OPERATION WEIGHT KG 1,650 1,900 MAX. POWER OUTPUT HP/KW 100 / 75 (Optionable)
DIMENSIONS (W)×(L)×(H) MM 1,050×1,600×1,550 1,170×1,750×1,650 ENGINE MAX. RPM RPM 2,000
MAX. CUTTING DEPTH MM 700 (Optionble) AIR SUPPLY TYPE T/C + OIL COOLER
MAX. CUTTING RPM RPM 2,200 (Optionable) TORQUE KG.M 37 / 1,700RPM
BLADE RAISE / LOWER ELECTRO-HYDRAULIC PUMP STARTING ENGINE ELECTRIC TYPE ( SELF-START)
AIR FILTER 4-STAGE (Optionable) FUEL TANK VOLUME L STANDARD 24 (Optionable)
SIZE OF TIRE (DIA. × W) MM 320×80 RUBBER TRACK HYDRAULICS
DRIVE SPEED (FLAT ROAD) KM/MIN 0.61 0.81 BLADE CUTTING DEPTH CONTROL ELECTROHYDRAULIC PUMP
CONTROL PANEL INTUITIVE AND ERGONOMIC CC MACHINE MOUNTING WHEELS MOUNTED TROLLEY
COLOR OF BODY BULE & SILVER (Optionable) WHEEL DRIVE METHOD GEAR BOX WITH HYDRAULIC DRIVING SYSTEM
ENGINE ACCESSORY
ENGINE MAKER / ORIGIN HYUNDAI / SOUTH KOREA WATER TANK INBUILT STAINLESS STEEL WATER TANK 20L
ENGINE TYPE DIESEL OPTION
NO. OF CYLINIDER 4-CYLINDER, 4-STROKE ENGINE (Optionable) DIAMETER OF DIAMOND BLADES 12INCH ~
ENGINE COOLING WATER-COOLED
Brands(HYUNDAI, KUBOTA, DEUTZ, KOHLER, HATZ, YANMAR) of mounting engine on CC Machine can be optionally changed by client's requirement before contract.
