GASOLINE FORWARD PLATE

COMPACTOR

CVP160G / CVP120G / CVP100G / CVP80G / CVP60G

CVP-SERIES single forward vibratory plate compactors can effectively and efficiently compact granular soils, crushed aggregates, and hot mix asphalt in open jobsites of all sizes.

FEATURES



  • Reliable 4-cycle air-cooled engines with recoil starter
  • Fully comfortable anti-vibration handle with padded grips
  • Standard water kit allows easier compaction of hot mix asphalt and dusty area
  • Heavy-duty shock mounting reduce high-vibration to the working engine and handle
  • Open type of plate compactor provides the ventilation, easy cleaning and maintenance
  • High centrifugal force is most suitable for powerful compaction and performance
  • High-vibration frequency brings better result of compaction
  • Lifting hook allows in ditch work safely and easily
  • Steel belt safety covers for prevention of sand and soil
  • Built-in wheel for easy transportation
  • Streamlined base plate for easy access to corner

APPLICATIONS



  • Plate compactors are ideal for these applications : Compacting back fill along and beneath foundations and in utility trenches
  • Compacting interlocking brick and decorative stone
  • Hot mix asphalt jobs such as driveway paving and pothole repair
  • Gravel driveway and walkway compaction
  • Landscape and structural granular soil compaction

USE

  • Asphalt road construction
  • Pipeline backfill construction
  • Repair for asphalt construction
  • Compactiong the sand, soil, gravel

OPTION

  • Streamlined safety engine guard
  • Height of handle
  • Water tank
  • Tool kit for emergency repair
  • Anti-Vibration handle with padded grip
  • Plastic belt cover
  • Urethane mat

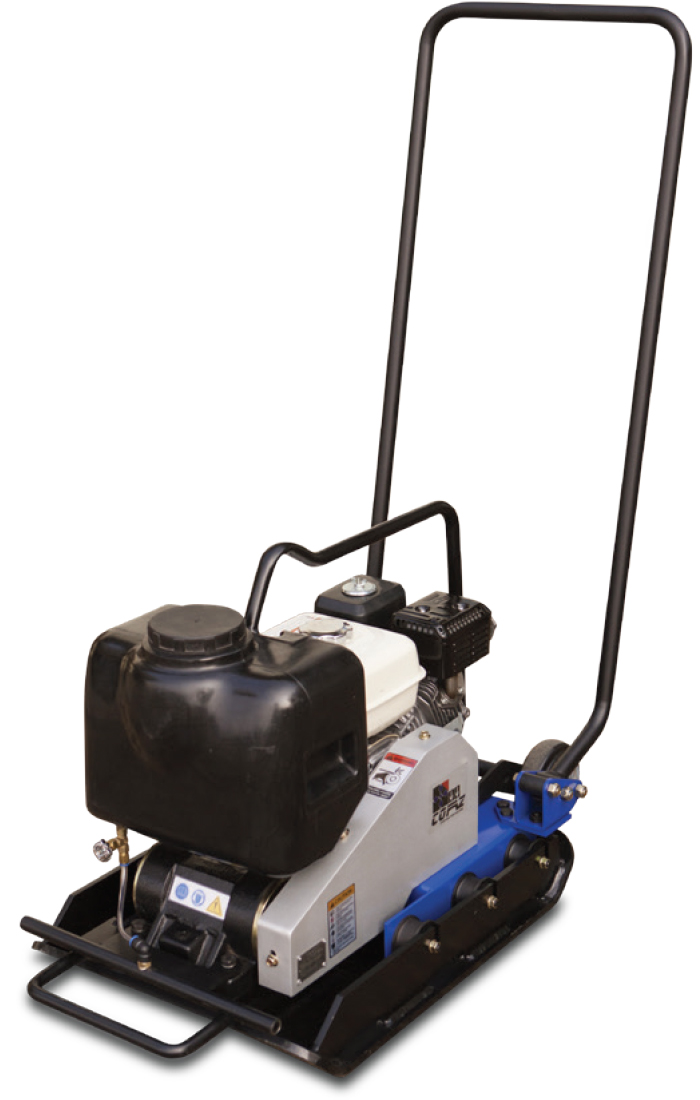

COMPACTOR OPEN TYPE GASOLINE PLATE



CVP-60G,CVP-80G
CVP-60G
Base plate : 375(W)x516(L)mm
CVP-80G
Base plate : 405(W)×516(L)mm
CVP-100G,CVP-120G
CVP-100G
Base plate : 450(W)×550(L)mm
CVP-120G
Base plate : 500(W)×550(L)mm
CVP-160G
CVP-160G
Base plate : 530(W)×600(L)mm

Product Views



Product Views
Product Views
Product Views
Product Views
Product Views
Product Views

ADVANTAGE



  • Open type of plate compactor provide ventilation, easy cleaning and maintenance.
  • Gasoline plate compactor is most suitable for powerful compac all construction area.
  • Heavy duty shock-absorber isolate engine and handle from strong vibration of base plate.
  • Essentric shaft make best quality of compaction with strong vibration in short time.

USE

  • Compacting soil, gravel, sand and aphalt.

OPTION

  • Engine (Gasoline)

AVAILABLE ENGINE



GX160 (5.5HP)

GX160 (5.5HP)

GX160 (5.5HP)

EX17 (6.0HP)

SPECIFICATIONS



MODEL CVP160G CVP120G CVP100G CVP80G CVP60G
OPERATING WEIGHT
(If full charged)
Kg / lb 158 / 348 118 / 260 98 / 216 82 / 180 67 / 147
DIMENSION (W) x (L) x (H) mm / inch 530×815×999
20.8×32.0×39.3
500×815×999
19.6×32.0×39.3
450×815×999
17.7×32.0×39.3
405×815×999
15.9×32.0×39.3
375×815×999
14.7×32.0×39.3
PLATE SIZE mm / inch 530×600 / 20.8×23.6 500×550 / 17.7×21.6 450×550 / 17.7×21.6 405×516 / 15.9×20.3 375×516 / 14.7×20.3
CENTRIFUGAL FORCE KN / kgf 23.8 21.5 15.6 14 11.1
VIBRATION FREQUENCY VPM 6,000 6,000 6,000 6,000 6,000
TRAVEL SPEED m(ft) / min 22 / 82 22 / 82 25 / 82 25 / 82 25 / 82
COMPACTED AREA ㎡ / hr 820 750 700 610 560
ENGINE
BRAND HONDA ROBIN
MODEL GX160 EX17
TYPE AIR-COOLED 4-CYCLE AIR-COOLED 4-CYCLE
FUEL GASOLINE GASOLINE
OUTPUT hp / kw 5.5 / 4.125 6.0 / 4.5
SPEED rpm 3,600 3,600
TANK CAPACITY l / gal 3.6 / 0.95 3.6 / 0.95
WEIGHT kg / lb 15 / 33 15 / 33
