E-CATALOG

GASOLINE & ELECTRIC

POWER TROWEL

CVT36E / CPT46E / CPT36M / CPT46M

CPT-SERIES are convenient with high performance to use it at the job sites to make a big parking lots and large flat for commercial and industrial areas.
You can complete a finishing job easily and economically in shorter period with less man power.

FEATURES



  • Over built gearbox assures long service life
  • Heavy-weight design to assure a superior finish
  • Height adjustable handle, assures operator comfort and easy control
  • Lifting tube as standard features allows trowel to be transported on the job-site with only two man power
  • Centric-safety switch shuts the engine down in the event of the operator loosing control handle of the trowels
  • Screw control ensures precise blade adjustment
  • Lifting hook for easy transportation
  • Foldable handle for easy transportation and storage
  • Low maintenance cost and long life span
  • Dependable gear & gear box design provides maximum torque transfer
  • Responsive clutch and pulley system for smooth speed transitions
  • Four blade design with maximum rotor speed of 50~100RPM

USE

Finishing work for wide concrete floor & in job site of any size

Safety device for worker



Safety device for worker

POWERTROWEL GASOLINE & ELECTRIC TYPE

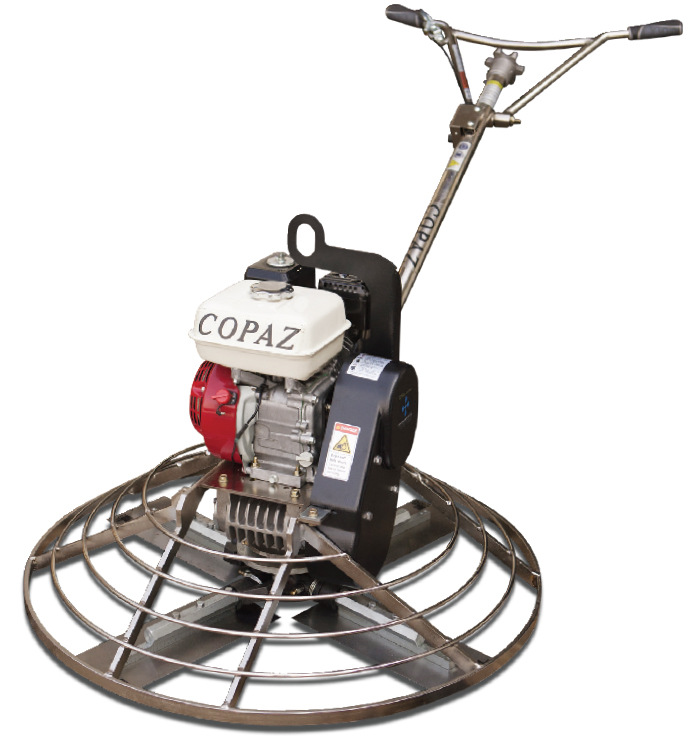

CPT36E

CPT36E

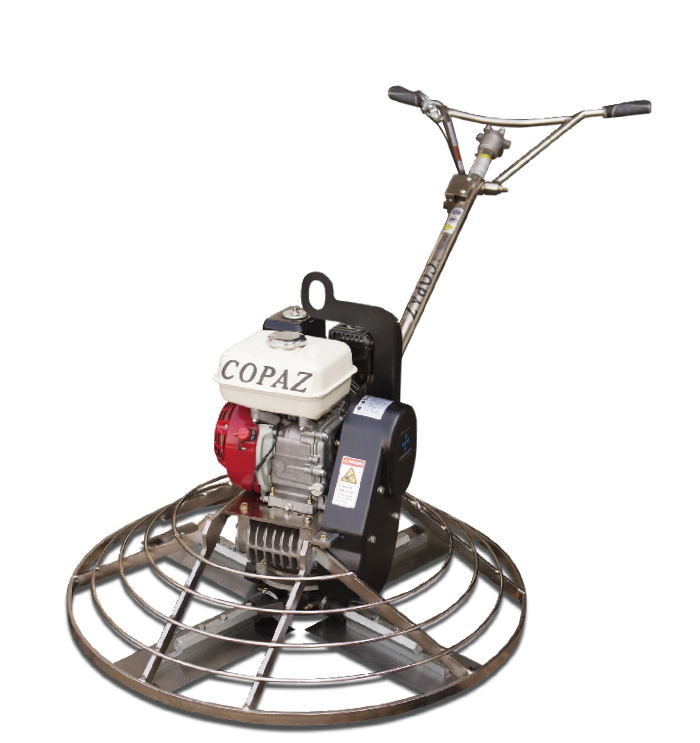

CPT46E

CPT46E

Product Views



Product Views
Product Views
Product Views
Product Views
Product Views
Product Views

Electric power trowel (CPT-36M / CPT-46M)



Electric power trowel

Option



Blade & Circular Pan

Blade

Blade

Circular Pan

Circular Pan

Engine (HONDA, ROBIN)

GX160 (5.5HP)

GX160 (5.5HP)

EX17 (6.0HP)

EX17 (6.0HP)

SPECIFICATIONS



MODEL CPT-36E CPT-46E CPT-36M CPT-46M
WEIGHT Kg / lb 78 / 171 94 / 207 81 / 171 92 / 207
DIMENSION mm 945 x 1943 x 937
37.2 x 76.5 x 36.8
1170 x 2055 x 967
46.0 x 80.9 x 38.0
945 x 1943 x 937
37.2 x 76.5 x 36.8
1170 x 2055 x 967
46.0 x 80.9 x 38.0
LENGTH OF HANDLE mm / inch 1504 / 59.2 1504 / 59.2 1504 / 59.2 1504 / 59.2
WORKING AREA mm / inch 945 / 37 1170 / 46 945 / 37 1170 / 46
BLADE SPEED rpm 50 ~ 150 50 ~ 150 50 ~ 100 50 ~ 100
ENGINE
BRAND HONDA ROBIN HONDA SIEMENS SIEMENS
MODEL GX160 EX17 GX390
TYPE
FUEL
mm / inch AIR-COOLED 4-CYCLE INVERTER WITH ELECTRIC MOTOR
FUEL GASOLINE ELECTRICITY
OUTPUT hp / kw 5.5 / 4.12 6.0 / 4.5 13.0 / 9.75 3.0 / 2.25 5.0 / 3.75
SPEED RPM 3600 1750
TANK CAPACITY l / gal 3.6 / 0.95 3.6 / 0.95 6.0 / 1.6 220V 50 / 60hz 380V 50 / 60hz
WEIGHT kg / lb 15 / 33 15 / 33 31 / 68.2 18 / 39.6 29 / 63.9
