E-CATALOG

PUSH-MANUAL & WHEEL DRIVE TYPE

CONCRETE & ASPHALT CUTTER

CCG270M / CCG390M / CCG390A / CCG630A

CCG-SERIES are designed for strength, durability and performance.
Whether cutting concrete or asphalt, the reinforced steel box frame design adds strength necessary to reduce vibrations while sawing.
Minimizing vibrations enhances the performance of the blade extends the life of the saw.

FEATURES



  • Designed for excellent strength, good durability and performance
  • Suitable for cutting concrete or asphalt, the reinforced steel box frame
  • Design adds strength necessary to reduce vibrations while sawing
  • Comfortable grip handle
  • Easy adjust belt tension / easy belt replacement
  • Designed to provide easy blade & belt replacement
  • Saw position guide ensures straight cutting
  • Water tank provides optimum water flow to the blade
  • Urethane wheel for easy transportation
  • Throttle lever for easy control of cutting speed
  • Japanese shaft bearing for long service life

DIAMOND BLADES



DIAMOND BLADES
DIAMOND BLADES

CONCRETE & ASPHALT CUTTER PUSH-MANUAL & WHEEL DRIVE TYPE

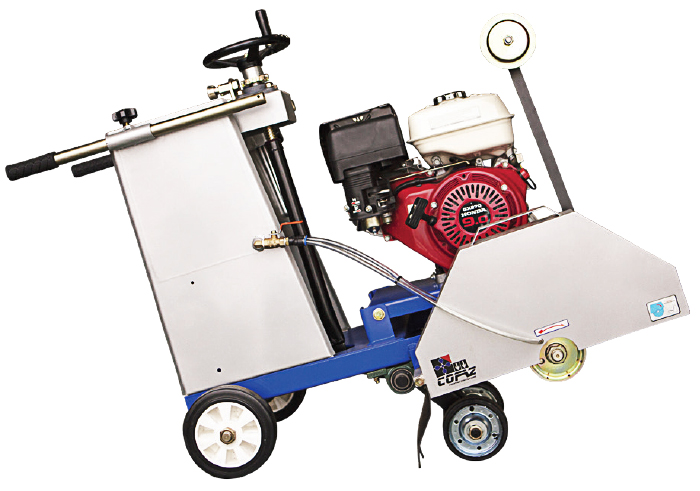

CCG-270M,CCG-390M

Push-manual cutting type
CCG-270M : 9.0hp (6.75kw)
CCG-390M : 13.0hp (9.75kw)

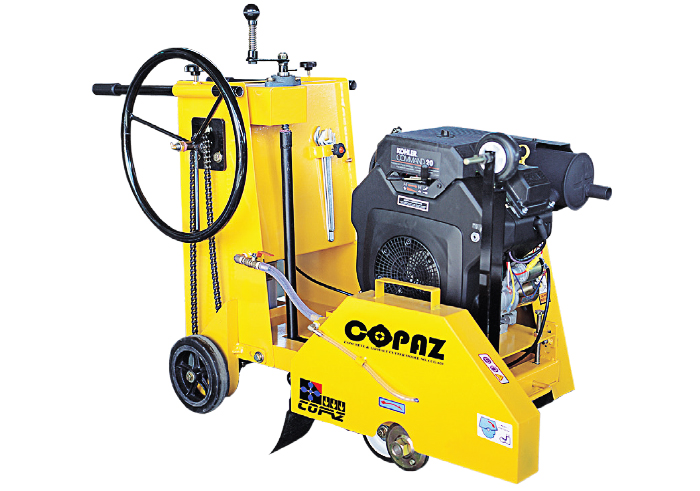

CCG-390A,CCG-630A

Wheel drive cutting type
CCG-390A : 13.0hp (9.75kw)
CCG-630A : 20.8hp (15.5kw)

Product Views



Product Views
Product Views
Product Views
Product Views
Product Views
Product Views

USE

  • Cutting surface of asphalt and concrete loads, paking lots, ground of shopping center.
  • Cutting block and stones
  • Repair works for Pipe line construction
  • Repair works for asphalt construction

OPTION

  • Available diamond blade (10"~20")
  • Electric starter with battery
  • Engine (Available engine model as below)

AVAILABLE ENGINE



GX630 (20.8HP)

GX630 (20.8HP)

GX390 (13.0HP)

GX390 (13.0HP)

GX270 (9.0HP)

GX270 (9.0HP)

SPECIFICATIONS



MODEL CCG-270M CCG-390M CCG-390A CCG-630A
WEIGHT Kg / lb 110 / 242 117 / 257 121 / 266 134 / 296
DIMENSION (W) X (L) X (H) mm / inch 610×1540×1040
24.0×60.6×40.9
610×1540×1040
24.0×60.6×40.9
630×1540×1040
24.8×60.6×40.9
630×1540×1040
24.8×60.6×40.9
MAX. CUTTING DEPTH 10” ~ 16” 10” ~ 18” 10” ~ 18” 10” ~ 20”
DRIVE METHOD PUSH-MANUAL PUSH-MANUAL WHEEL DRIVE TYPE WHEEL DRIVE TYPE
WATER TANK I / gal 27.6 / 7.29 27.6 / 7.29 28.2 / 7.44 28.2 / 7.44
STARTER RECOIL STARTER (OPTION: ELECTRIC STARTER) ELECTRIC STARTER
ENGINE
BRAND HONDA HONDA HONDA HONDA
MODEL GX270 GX390 GX390 GX630
TYPE AIR-COOLED 4-CYCLE AIR COOLED 4-CYCLE
FUEL GASOLIINE GASOLIINE
OUTPUT Hp / KW 9.0 / 6.7 13.0 / 9.75 13.0 / 9.75 20.8 / 15.5
SPEED RPM 3,600 3,600 3,600 3,600
TANK CAPACITY gal 6.0 / 1.6 6.0 / 1.6 6.0 / 1.6 15 / 4.0
WEIGHT Kg / lb 25 / 55 31 / 68.2 31 / 68.2 44.4 / 97.7
