PENDULUM TYPE

CONCRETE VIBRATOR

CCV28 / CCV32 / CCV38 / CCV45/ CCV50/ CCV60

CCV-SERIES pendulum concrete Vibrator make 12,000~14,000VPM hitting three times per rotation between pendulum shaft and the vibrator head and remove all excessive water, air gap and impurities in concrete mortar so that concrete structure become stronger and better.

FEATURES



  • Pendulum concrete vibrators can remove all excessive water, air gap and impurity in concrete mortar so that concrete structure become stronger and better pendulum concrete vibrator is designed to effectively performed to expel the entrapped voids and compact the concrete.
  • The high rotation of drive unit transmits as high as 12,000 Vibration per minute into the vibrator head through the flexible shaft, ensures maximum compaction for the best possible finish.
  • It can be driven by three types of unit, gasoline engine drive unit, Diesel engine drive unit and Electric motor drive unit.

USE

Removing all excessive water, air and residues in concrete mortar to make Strong concrete structure and smooth surface

Option



  • Coupling : Pin, Ball, Dynapac
  • Length of Flexible rubber hose : 5.0m ~ 9.0m (Max. 12m)
  • Engine : HONDA, ROBIN
Option_image

CONCRETE VIBRATOR & DRIVE UNIT PENDULUM TYPE



CCV28 / CCV32 / CCV38 / CCV45 / CCV50 / CCV60 & CCM-1 / CCM-2 / CCE-1 / CCE-1D

ELECTRIC DRIVE UNIT

USE

Engine and electric drive unit is power unit of pendulum concrete vibrator and flexible pump

CCM-1,CCM-2

CCM-1 / CCM-2

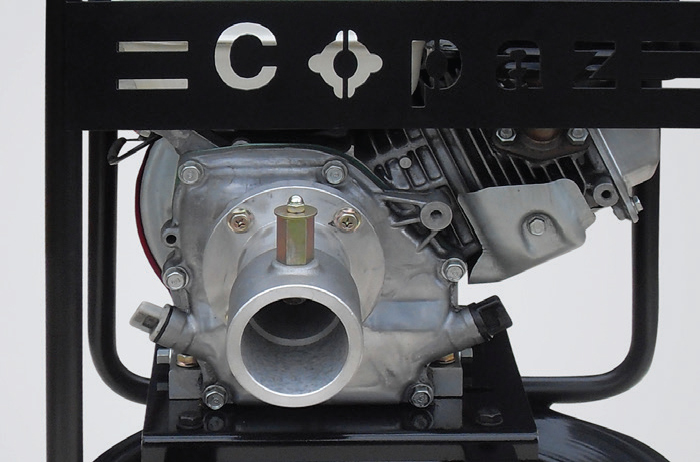

ENGINE DRIVE UNIT

CCE-1

CCE-1

CCE-1D

CCE-1D

Product Views



Product Views
Product Views
Product Views
Product Views
Product Views
Product Views

AVAILABLE ENGINE



DY27 (6.0HP)

DY27 (6.0HP)

DY23 (4.5HP)

DY23 (4.5HP)

GX160 (5.5HP)

GX160 (5.5HP)

EX17 (6.0)

EX17 (6.0)

Kind of coupling



Kind of coupling

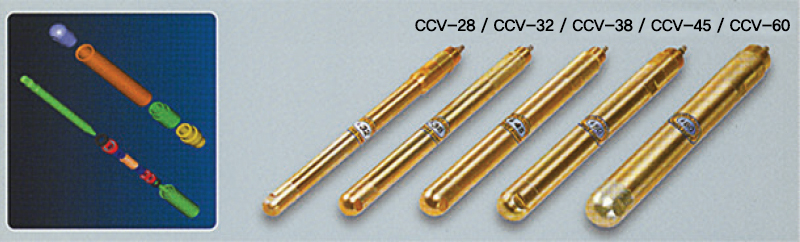

Size of shaft



Size of shaft

SPECIFICATIONS



MODEL CCV-28 CCV-32 CCV-38 CCV-45 CCV-60
CONCRETE VIBRATOR
WEIGHT Kg / lb 16 / 24 17 / 26 18 / 28 19 / 30 24 / 33
DIMENSION (W) x (L) x (H) mm / inch 28 x 445
1.1 x 17.5		 32 x 445
1.2 x 17.5		 38 x 445
1.4 x 17.5		 45 x 545
1.7 x 17.5		 60 x 545
2.3 x 17.5
FREQUENCY VPM 12,000 ~ 14,000 12,000 ~ 14,000 12,000 ~ 14,000 12,000 ~ 14,000 12,000 ~ 14,000
REVOLUTION of FLEXIBLE SHOT (RPM)   3,000 ~ 3,600 3,000 ~ 3,600 3,000 ~ 3,600 3,000 ~ 3,600 3,000 ~ 3,600
VIBRATION OF AMPLITUDE mm / inch 1.2 / 0.04 1.4 / 0.05 1.6 / 0.06 2.0 / 0.07 2.4 / 0.09
LENGTH OF FLEXIBLE SHIFT   STANDARD LENGTH : 6M/236.2 inch (5~9M/196.8~354.3inch AVAILABLE LENGTH)
COUPLING   PIN, BALL, DYNAPAC
BEARING & OIL SEAL   JAPANESE BEARING & OIL SEAL
COATING OF SHAFT HEAD   CHROMIUM PLATING
MODEL CCE-1 CCE-1D MODEL CCM-1 CCM-2
ENGINE DRIVE UNIT ELECTRIC DRIVE UNIT
WEIGHT Kg / lb 18 / 39 39.5 / 87 WEIGHT Kg / lb 10.7 / 23.5 12.5 / 27.5
DIMENSION (W) x (L) x (H) mm / inch 410×420×420
16.1×16.5×16.5 		485×470×500
32.2×18.5×19.6		 DIMENSION (W) x (L) x (H) mm / inch 180×330×270
7.0×12.9×10.6 		180×330×270
7.0×12.9×10.6
FRAME TURN TABLE or SQUARE FRAME FRAME SQUARE OR SKID FRAME
COUPLING PIN, BALL, DYNAPAC COUPLING PIN, BALL, DYNAPAC
ENGINE ENGINE
BRAND HONDA ROBIN ROBIN ROBIN TYPE ELECTRIC MOTOR
MODEL GX160 EX17 DY27 DY23 SPEED RPM 3,000
TYPE AIR COOLED 4-CYCLE AIR COOLED 4-CYCLE POLES 2
FUEL GASOLINE DIESEL VOLTAGE V 220V 220V
OUTPUT hp / kw 5.5 / 4.1 6.0 / 4.5 6.0 / 4.5 4.5 / 3.375 FREQUENCY Hz 50 or 60 50 or 60
SPEED RPM 3,600 3,600 3,600 3,600 OUTPUT hp / kw 1.0 / 0.75 2.0 / 1.5
TANK CAPACITY l / gal 3.6 / 0.95 3.6 / 0.95 3.2 / 0.84 3.2 / 0.84 MAX. TORQUE kgf.cm 7.482 7.482
WEIGHT kg / lb 15 / 33 15 / 33 29.5 / 64.9 29.0 / 63.9 FRAME SURFACE ℃ 49.5 49.5
